Narrow wide direct mount chainrings for Race Face Cinch cranks. The chainring is designed to give the optimum chainline – in the middle of the cassette. This gives the smoothest shifting across the cassette and the straightest chain when in the largest or smallest cog.
The tooth profile of our narrow/wide chainrings maintain excellent wear for a durable product and has an optimized chainline for 1x systems.
Fits:
RaceFace Cranksets SixC, Next SL, Turbine Cinch, Atlas Cinch
Specifications:
- Chainrings are compatible with all 10, 11 and 12-speed chains such as:
- HG-X: XTR CN-M981, CN-HG94, CN-HG54, PC-XX1, PC-1091, PC-1071
-
Bottom Bracket Types: GXP and Boost

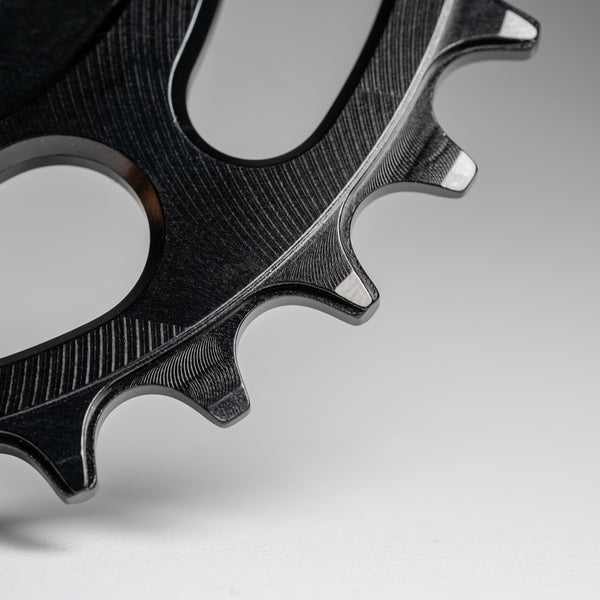

- Machined from solid 7075 T6 Aluminum
- Anodized Black with Laser Etched Graphics
Chainline:
-
GXP: 48mm from the bottom bracket centre
-
Boost: 51mm from the bottom bracket centre
Ring Offsets:
-
GXP: 6mm
-
Boost: 3mm
- BB30: 0mm
Compatible with all 9, 10, 11 Shimano and SRAM drivetrains, 12-speed SRAM Eagle drivetrains
Weight:
- 28T – 75g
- 30T – 85g
- 32T – 95g
- 34T – 105g
- 36T – 115g
Precision CNC Machined in Whistler, BC
Canada
